Generating Barcodes in Oracle XML BI Publisher (BIP) & E-Business Suite (EBS)

NOTE: IDAutomation supports and guarantees that the barcode fonts and Java encoders provided for BIP are fully functional and will function as intended. Barcode integration in BIP is a complex process and should only be performed by developers with knowledge of BIP report design, XML and Java. Because of the complexity involved, IDAutomation will support the Java barcode product with the examples provided in the package from IDAutomation. For troubleshooting purposes, it is recommended to get the examples provided in the licensed Java encoder and font working first and then proceed to implement integration with BIP. Issues with BIP should be directed to Oracle Support when the Java product is working properly.

This barcode generation solution is compatible with Oracle E-Business Suite (EBS) to print barcodes in BI/XML Publisher Reports which may be generated from the E-Business Suite concurrent program. This example is a summary taken from a barcoding blog written by Tim Dexter. While IDAutomation supports the Java Font Encoder class, we cannot provide direct support for BIP.

The implementation tutorial presented below generates QR Code 2D barcodes in Oracle XML Publisher with RTF templates using the QR Code Font and Encoder. Version 2022 and greater includes built-in support for UTF-8TLV and Base64, Swiss QR-Bill & Center Override.

      BIP QR Code Implementation Tutorial

      1. Install all required applications and components for Word and BI Publisher.

      2. Purchase, download, extract, and install the QR Code Font and Encoder. (A Developer License is required for the necessary Java Font Encoder)

      3. A Java Font Encoder class file is included as .jar with the license. Extract this file and retrieve the .jar.

      4. Set up the JAR file by placing it in the classpath. View Oracle's documentation for additional help. Test that the JAR file was properly installed in the classpath by running the "QRCodeBarcodeExample" program included in the developer package.

      5. Download the It includes the and dependencies (Logger.class and XDOBarcodeEncoder.class) for creating the barcodeutilQRCode.class.

      6. Open the file.

      7. Update the parameters  in the .java file based on the barcode requirements:
        /* Import the idautomation encoder class */
        import com.idautomation.fontencoder.qrcode.QRCodeEncoder;
        QRCodeEncoder qre = new QRCodeEncoder();
        boolean ApplyTilde = false;
        String EncodingMode = "Byte";
        int Version = 0;
        String ErrorCorrectionLevel = "M";
        boolean BestMask = false;
        return qre.FontEncode(DataToEncode,ApplyTilde,EncodingMode,ErrorCorrectionLevel,Version,BestMask);
        Class[] clazz = new Class[] { "".getClass() };

      8. Compile the file to create a new class named barcodeutilQRCode.class.

      9. Access the jlib path and place the following jar files in the classpath: xdocore.jar, xmlparserv2.jar, collections.jar, aolj.jar, share.jar, xdoparser.jar, jewt4.jar, 18nAPI_v3.jar.

      10. Place the barcodeutilQRCode.class into a jar named barcodejar.jar.

      11. Copy the IDAutomation_QRCode_JavaFontEncoder.jar and the barcodejar.jar to the jlib folder within the Template Builder for Word.

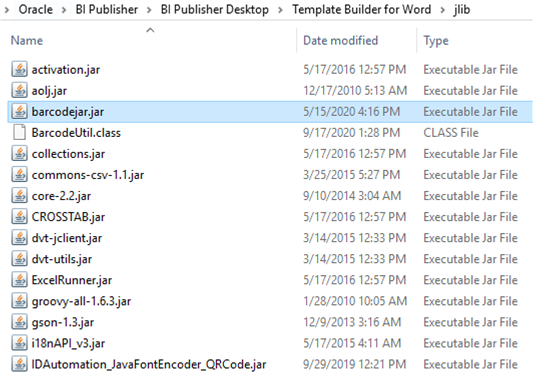

        Barcodejar.jar in the Template Builder for Word

      12. So that BI Publisher can find the wrapper class, all the jars required for the project must be put into the RTF2PDF.jar which is located in the jlib folder.

      13. Make a backup of the RTF2PDF.jar file.

      14. Open the RTF2PDF.jar using Winzip or 7-zip and access the META-INF directory. Open and edit the MANIFEST.MF to include the jars at the end of the classpath list:
        Manifest-Version: 1.0
        Class-Path: ./activation.jar ./mail.jar ./xdochartstyles.jar ./bicmn.jar ./jewt4.jar
        ./share.jar ./bipres.jar ./xdoparser.jar ./xdocore.jar ./xmlparserv2.jar
        ./xmlparserv2-904.jar ./i18nAPI_v3.jar ./versioninfo.jar
        ./barcodejar.jar ./IDAutomation_JavaFontEncoder_QRCode.jar
        Main-Class: RTF2PDF

      15. In order to render the barcode in a PDF report, it must be embedded by referencing the font within a config file in the BI Publisher config folder. Open the xdo example.cfg file located:

      16. Add an entry for the IDAutomation2D font in the code area under the font setting:

        Embed IDAutomation2D font for BI Publisher

        <!--IDAutomation 2D QR Code Font-->
        <font family="IDAutomation2D" style="normal">
        <truetype path="C:\windows\fonts\IDAutomation2D.ttf"/>

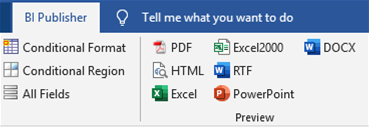

      17. Return to Word and access the BI Publisher file. Double-click the field to barcode and choose Add Help Text to open the Form Field.

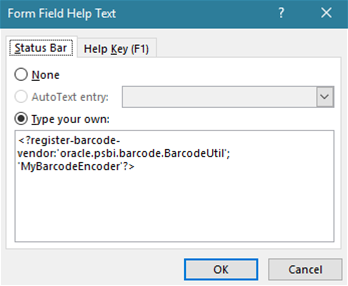

      18. In the Status Bar tab, enter the first command. Set the vendor to the specific class used in the solution. For QR-Code, it is barcodeutilQRCode instead of BarcodeUtil.
        <?register-barcode-vendor:'ENCODER WRAPPER CLASS'; 'ENCODER NAME'?>
        Register IDAutomation barcode in Form Field
      19. Register IDAutomation barcode in Form Field´╗┐
      20. In the Help Key (F1), enter the second command:
        Encode Data in BI Publisher Form Field´╗┐
      21. To ensure the data is encoded, view the document (PDF,RTF,HTML): BI Publisher Barcode PreviewIDAutomation Encoded Data in BI Publisher

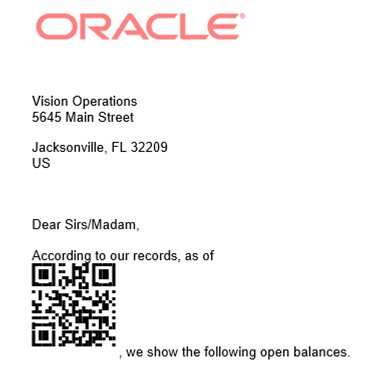

      22. Return to the project and select the IDAutomation2D font from the font list. View the document.QR Code Barcode in BI Publisher

      JAR & Classpath Reference of IDAutomation Java Font Encoders

      Java Barcode Jars
      Symbology InformationClass File Path
      IDAutomation_QRCode_JavaFontEncoder.jarQRCode with support for Byte, Numeric, and Alpha-numeric encoding modes. Automatic Version selection. Version 2022 and greater includes new built-in support for UTF-8TLV and Base64, Swiss QR-Bill & Center
      Code 39, Extended Code 39, Code 128, Code 128 auto, GS1-128, Interleaved 2 of 5, Codabar, UPC-A, UPC-E, MSI, EAN-8, EAN-13, Code 11, Code 93, Industrial 2 of 5, USPS Intelligent Mail IMb, Postnet & Planet, GS1 DataBar, Stacked, Truncated, Stacked Omni-directional, Limited, Expanded, Expanded Stacked Omni-directional, and Universal Fonts

      com.idautomation (Linear, Databar, and Intelligent Mail)

      com.idautomation.universalencoder (Universal)

      Aztec matrix generation with automatic mode selection and GS1 compatibility. AIM Specification ANSI/AIM BC13 ISS Aztec
      Data Matrix with ECC200, ASCII, text, C40 and Base256 encoding, Includes support for US DOD UID and macro codeword 236 and 237 ISO/IEC 15434 formatscom.idautomation.fontencoder.datamatrix
      PDF417 with EC levels 1 to 8, text and binary
      In Development and Testing
      MaxiCode with structured append, UPS encoding, and mode 2-6

      Additional Support
